Mounting systems are an important element of solar arrays—they secure solar panels to the roof or the ground. Here, we go over the basic categories of roof-mounted solar systems to help new installers get a grasp on installation.

Pitched Roof Mounting Systems

1. Tile Roof

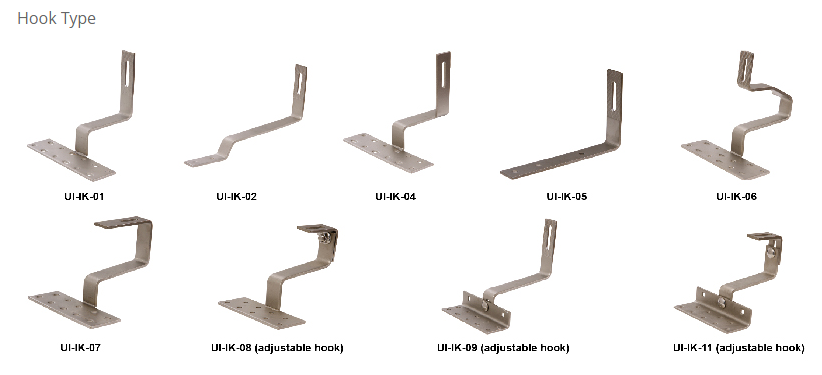

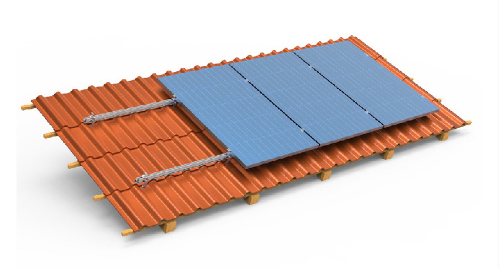

Usually for pitched tile roof we will use tile hooks to connect the rails and hold panels with clamps. For different types of tile, we can choose a suitable hooks for suit the roof.

2. Metal Roof

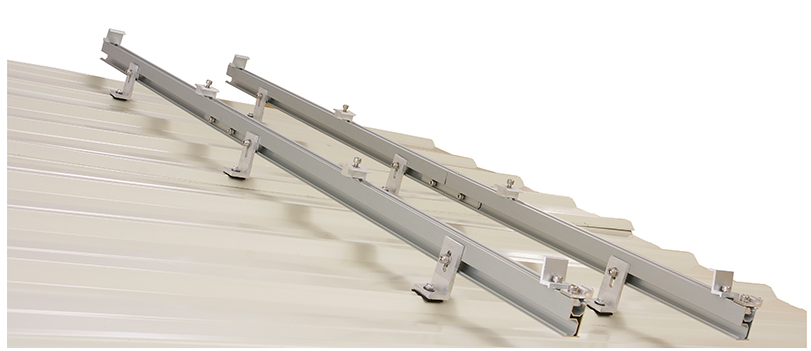

The most popular kit for metal roof we can say L feet, but with the selection of different kinds of tin roofs, there are more new products appears to suit market.

Like clamping hooks for standing seam metal roof, with the advantage of no penetrating roof surface. SS-04 Kit for trapezoidal roof. Those components are all available in UISOLAR. We can according your roof types to choose the best solution for you.

Flat Roof Mounting systems

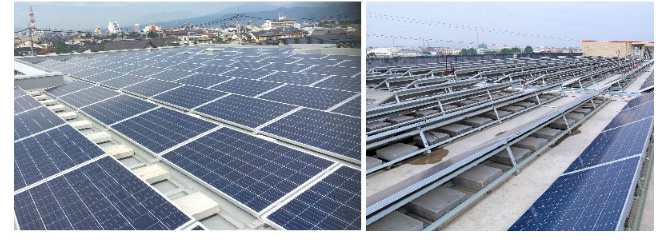

Ballasted mounting is often used for flat concrete roof, no penetrating and adjustable tilt angle triangle mounting is available in UISOLAR. Also we can see some flat tin roof nowadays, specially for commercial area. Triangle mounting can meet the request.

Shingle Roof Systems

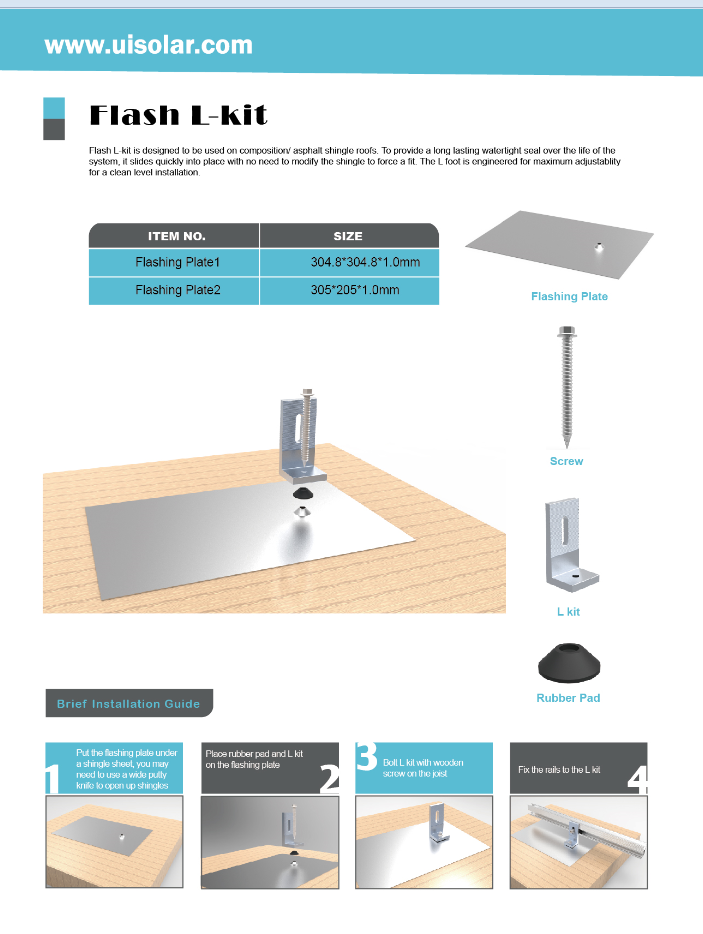

Flashing Kit mount is very welcomed for shingle roof:

- Designed for composition/ asphalt shingle roof.
- Provide a long lasting watertight seal over the life of the system.
- Slides quickly into place without modifying the shingle to force a fit.

Any needed or questions about mounting system installation please feel free to contact us.
