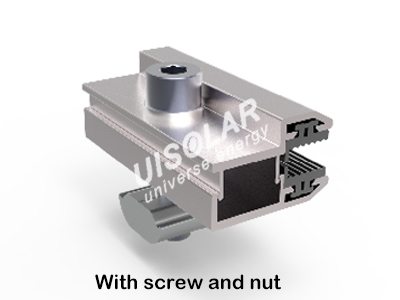

UISOLAR frameless solar clamps are made of Aluminum 6005-T5 & EPDM and used for the framless solar panel installation.
It's approved by First Solar & Canadian Solar & JA Solar.
Thin Film Clamps especially for:
1.First Solar series 4 Modules
2.Canadian Solar CS6X-P-FG
3.Trina Solar Duomax TSM-PEG14.
4. JA Solar
5. Other panel with the thickness 4~9mm
Brand:
UISOLARItem NO.:
Thin Film Module ClaColor:
silver,blackShipping Port:
xiamen portLead Time：
7-15daysThin film module clamp
|
Product Name |
Thin film module clamp |
|
Material |
Aluminium 6005-T5, SUS304 &EPDM rubber |
|
Color |
Sliver or black |
|
Surface treatment |
Anodized, Oxide film thickness》12μm |
|
Standards |
AS/NZS1170, JISC8955:2017 |
|
Application |
Solar mounting system |
|
Specification |
70mm/80mm/100mm/130mm or customized |
UI-IC-Type1 (only the length 80mm is available )
UI-IC-Type3 70/80/90/100/130 or customized
UI-IC-Type4 70/80/90/100/130 or customized
UI-EC-Type1 (only the length 80mm is available )
UI-EC-Type3 70/80/90/100/130 or customized
UI-EC-Type4 70/80/90/100/130 or customized
1. Certificated by First solar,Canadian solar, Trina solar.
2. EPDM rubber gets UL Certification.
3. Both Roof mount and ground mount are ok.
Frameless clamps is adjustable to suit panel of different thickness.
Different types of clamps can meet different requirements.
Type3 is normal type.Type4 frameless clamp is wider so it's more stable.
Customizing is available here.
、
The Ground Bolt can also accept customized as request. The regular diameter is 76mm, and the Ground Plate diameter can be 200mm and 220mm. The length can be 1.2m, 1.6m, 1.8m and 2m. The thickness is 2.5mm, 2.75mm, 3.0mm. Hot dip galvanized average thickness is more than 80μm.
To ensure safety , solar project with fence more durable and safer. To prevent accidents, the fence can prevent children entering to causing accidents.
To ensure safety, solar project with fence more durable and safer. To prevent accidents, the fence can prevent children entering to causing accidents.
UISOLAR grounding system is used for the Grounding purchase.The grounding washers/clips are used for the grounding each module and the guide rail with the pinholes on the wahsers to pierce the anodizing layer of the aluminum rails.We have different types of grounding washers for different rails'choices . Material : Grounding washers : SUS304 Grounding lug : Al6005-T5& SUS304 Bounding Jumper: Copper & SUS304
UISOLAR clamping hooks are the railless solution for the installation of Metal Roof, with different clamping hooks applied to different shape of metal roof. UI-TR series Standing seam clamp is fixed to the raised metal sheet on the roof, Non penetration is needed. SS-04 series mounting kit is designed for trapezoidal shape metal roof sheet. This is the common hook for most steel roof.
UISOLAR rail included two types, one is solar roof rail, another is solar ground rail. Roof rails are used in roof mounting. Ground rais are used in ground mounting. They are made of extruded anodized aluminum and it can be made standard length and customized length . It has silver and black design. These rails are applied in commercial and residential solar system.
UISOLAR tile roof hooks are used for roman tile roof, flat tile roof, asphalt tile roof and slate tile roof. Material :stainless steel 304 Surface : sandblasted make hooks highly corrosion resistant Accompany accesories components: wooden screws(M6.3*80, Aluminum nut +bolt (M8*25mm allen bolt ) for rail connection
UISOLAR solar clamps are made of Aluminum 6005-T5 and can be suitable for the solar panel with the thickness 25~50mm. It can be equipped with different nuts and applicated with different length of bolt to meet different requirement. The color can be both Silver and Black. Grounding pins can be added to the clamps to make it grounding purchase.
L feet and hanger bolts are used in tin roof installation. Commonly used hanger bolts are M10*200, M10*250 and M12*300.Of course, customized are available here.
Solar cables are designed to connect solar panels for the solar systems. They are dedicated to the pv system direct current(D.C)side . Cables can be used for both indoor and outdoor with high mechanical strength in extreme weather conditions. Cable connectore are used to connect solar panels. The color can be Black and Red.
UISOLAR cable clips are widely used in solar panel array cable positioning, to help prevent damage of the cable insulation. It is made of high quality stainless steel SUS304 material, and it is very easy to install, no special tools needed.
Nuts are usually matched with bolts. Material: Aluminum 6005-T5, SUS304 and Carbon steel
Universe Solar(UISOLAR) is a high-tech enterprise specializing in the development,manufacturing and marketing of PV mounting. With our top quality and service, UISOLAR mountings are welcomed by most of the installers, distributors, and EPC ect. all over the world.
