Fixed Simple Triangle Solar Brackets

Fixed Simple Triangle Solar Brackets

The Fixed simple triangle solar brackets is cost-effective. It can be installed penetrate into concrete base for solar panel mounting. Fold design allows for easy transportation, and easy mounting.
  • Brand:

    UISOLAR
  • Item NO.:

    Simple Triangle Sola
  • Color:

    silver,black
  • Shipping Port:

    xiamen port
  • Lead Time:

    7-15days
  • Installation site:

    Pithch tin roof, concrete roof
  • Max. wind speed:

    60m/s
  • Snow load:

    1.4KN/m²
  • Standards:

    AS/NZS1170, JISC8955:2017
  • Product Details

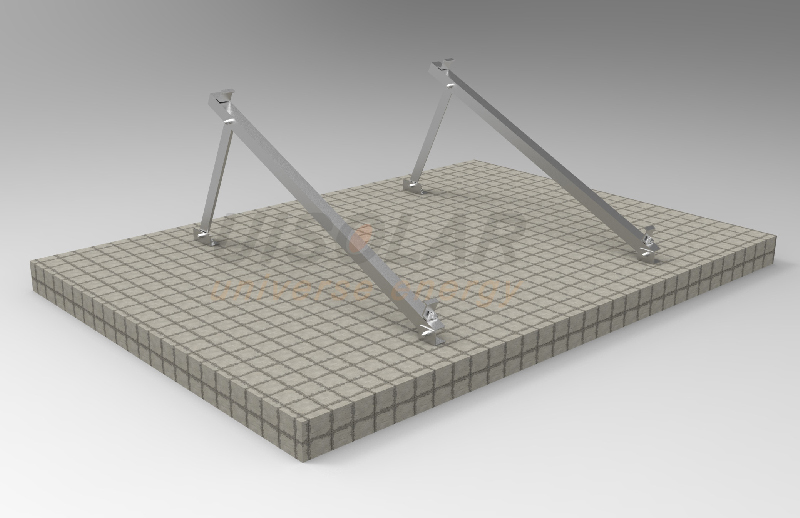

Fixed Simple Triangle Solar Brackets

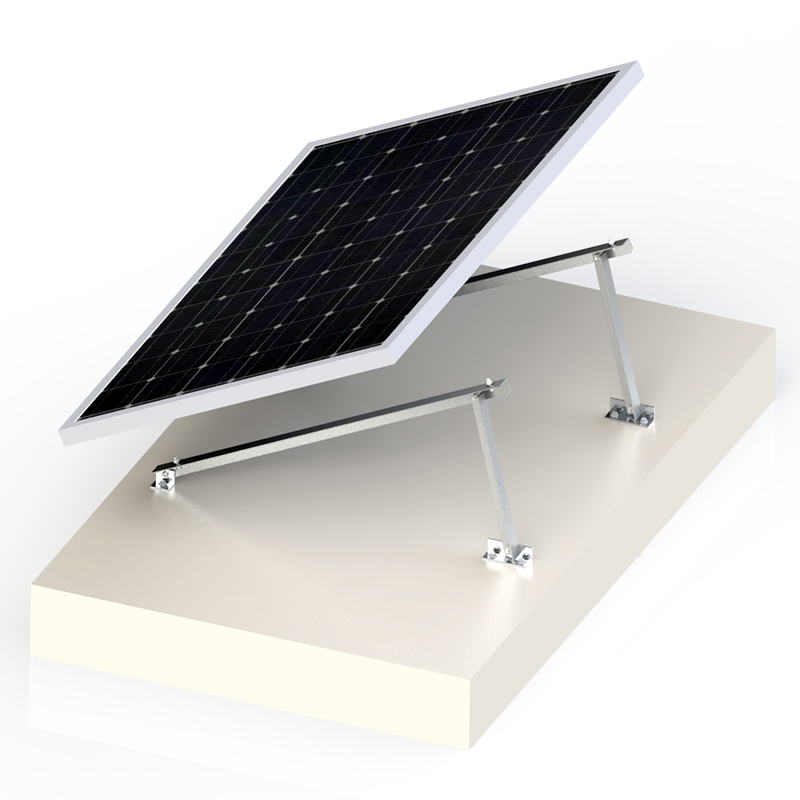

triangle mounting of solar panel mounting brackets


triangle mounting of Solar Panel Mounting Bracket

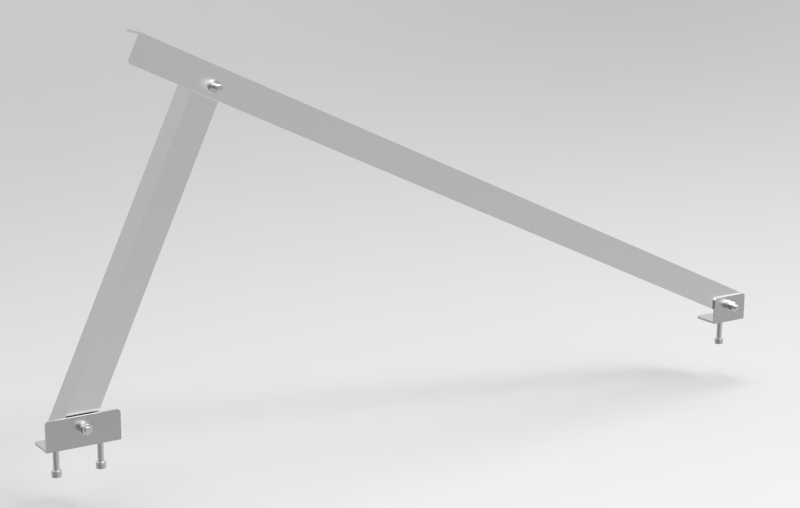

components for triangle brackets





Module Angle

10-60 degrees

Max. Wind Speed

45m/s

Snow Load

1.4kN/m2

Material

Al6005-T5& SUS304



Versatility

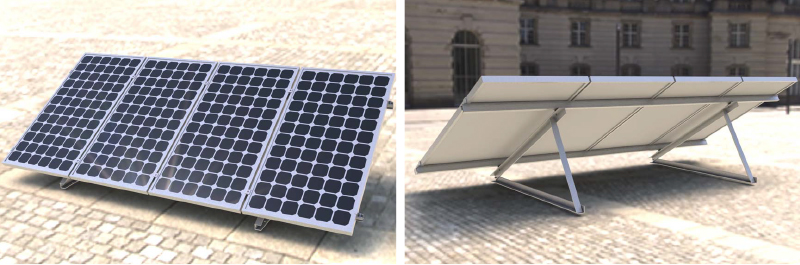

Available use on the flat concrete roof or pitched tin roof.

Flexibility

With flexible title angle designed is well used.

Quick and Easy Installation

Installation can be completed in a short time with 5 main components.

Strength Solution

All design can be strong enough after strength analysis.



well-used package of triangle brackets
