Balcony Mounting Structure

1. Highly pre-assembing make the installation to be easy and quick

2. Al 6005T5 and SUS304 fastener bols are used to get a better anti rusted.

3. Can be flexible for any thickness of panels, no need to change diffent panel clamp.

Brand:
UISOLAR
Shipping Port:
Xiamen,China

Contact Now

Product Categories

Hot Products

Product Details

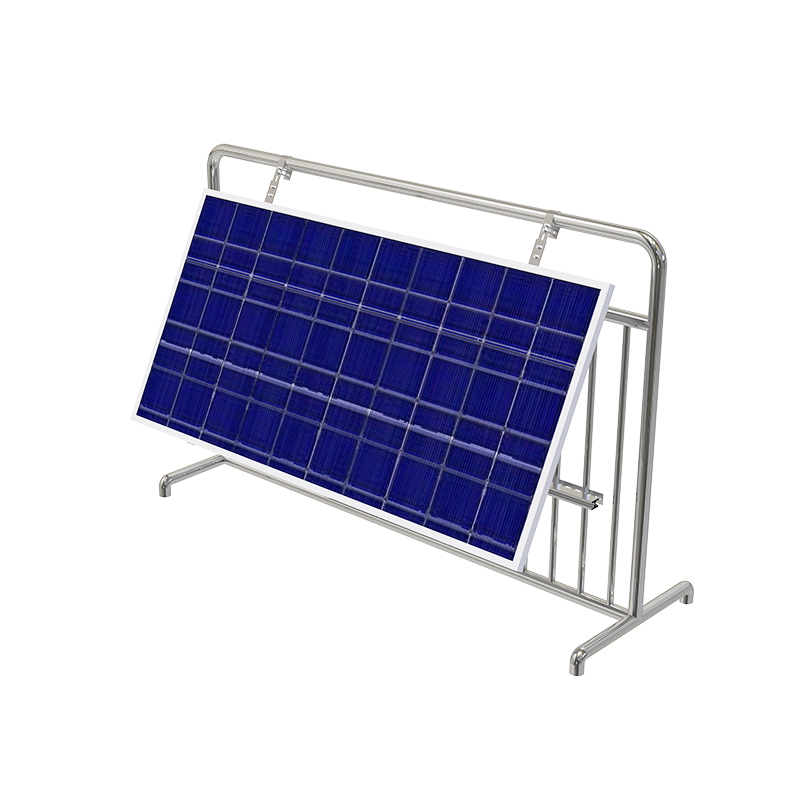

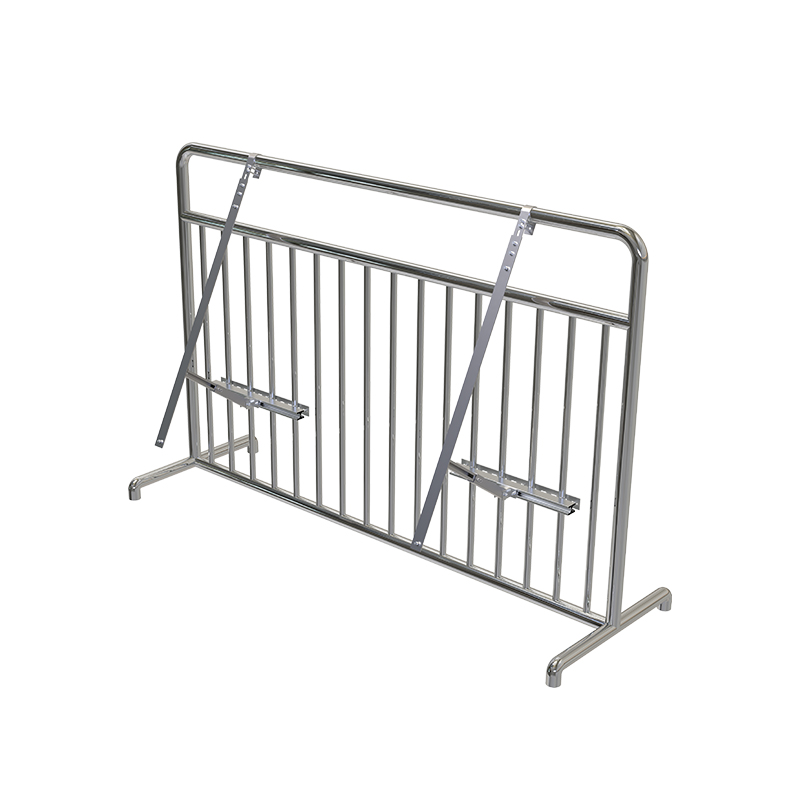

Balcony Mounting Structure

Product Name	High Quality Adjustable Balcony Mounting Structure
Material	AL6005-T5, SUS304
Panel tilt angles	10~30°
Advantage :	Portable, Univeral for any framed panels
Warranty	10 Years and 25 Years Service Life

1. Highly pre-assembing make the installation to be easy and quick

2. Al 6005-T5 and SUS304 fastener bols are used to get a better anti rusted.

3. Can be flexible for any thickness of panels, no need to change diffent panel clamp.

Q1: Are you a Factory?

A: Yes. We are a factory who is specialized in the producing the solar mounting kits in Xiamen, China. Our goods including solar mounting components, also the whole mounting system, including roof mounting, Ground Mounting, Carport, Solar Farm and also the OEM service.

Q2: How can we guarantee quality?

A: Always a pre-production sample before mass production;

Spot check will be done for each procedure during our goods preparing. And before shipment, all will be check again.

Third Party Inspection is accepted.

Q3: Can I get sample before we place the order ?

A: Yes. Samples can be avaible anytime if you need.

Q4: How can I get a quotation?

A: 1. If for the regular components, just show us the item No. and quantity, we will quote you immediately.

2. If for the OEM componnets, show us the technical drawing or the sample, we will show you our drawing and then quote you after got your confirmation to the drawing.

3. If for the whole mounting solution, to make sure can provide the most appropriate quotation, some more information about the project will be needed:

1) Solar panel qty. and dimension (LxWxT) of the panel

2) Panel/ structure tilt angles

3) Max wind load and snow load

4) Panel layout plan or the roof/ground size (Lx W)

5) Others it may need according to different solution

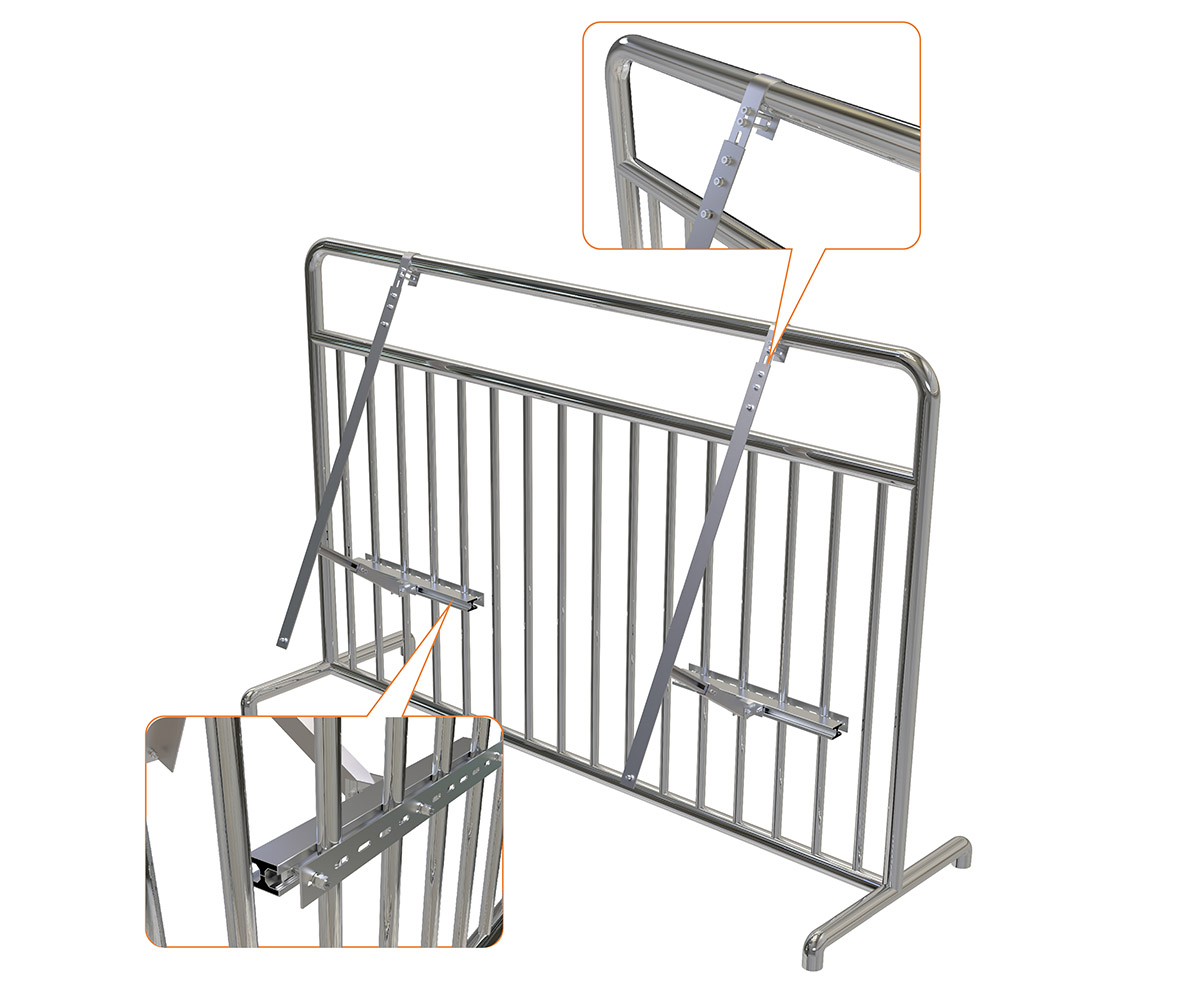

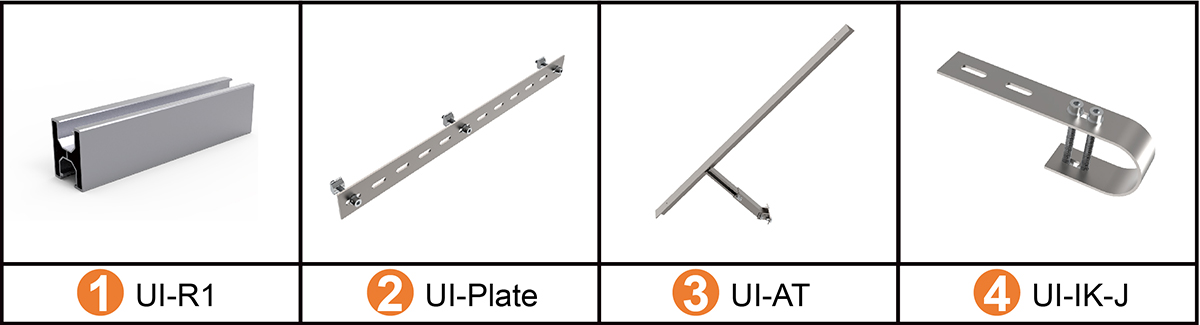

Hot Tags: Balcony Mounting Bracket Adjustable Mounting Solar Balcony Mount UI-Plate connect with UI-R1 and then the Adjustable Bracket Mounting
